Google Dialogflow interpreter

PreviousGoogle DialogflowNextGoogle Dialogflow Knowledge Base

Last updated 11 months ago

Configure the interpreter

We can now create an interpreter in OpenDialog that will connect to that Dialogflow agent. On the "Interpreters Setup" page, select "Add new interpreter". Here you'll need to choose a unique name for the interpreter, enter the relevant language code, set your environment and paste your JSON key that we had just created in the previous step.

Once you've filled in the details you will be able to run a connectivity test to ensure that the API key is working correctly.

With a success message in place you are ready to start using intents in your conversation design.

Mapping intents

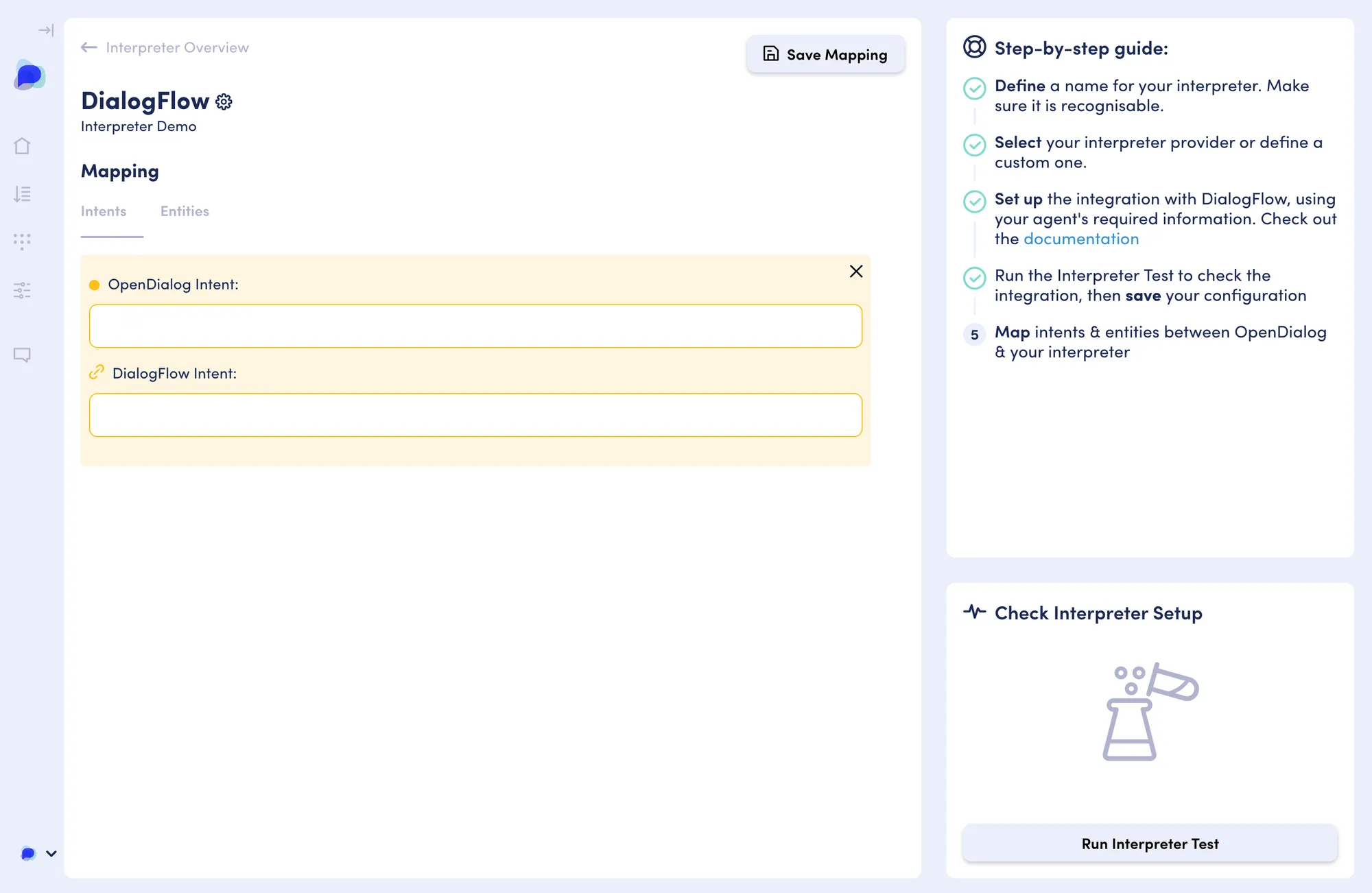

The Dialogflow management screen allows us to map Intents and/or Entities between OpenDialog and Dialogflow. What this means is that you can say things such as the intent calls "Example Intent" in OpenDialog should be compared with the intent called "Another Intent" in Dialogflow.

This makes it simpler to reuse preexisting intents or entities without having to rename things.

Activating the interpreter

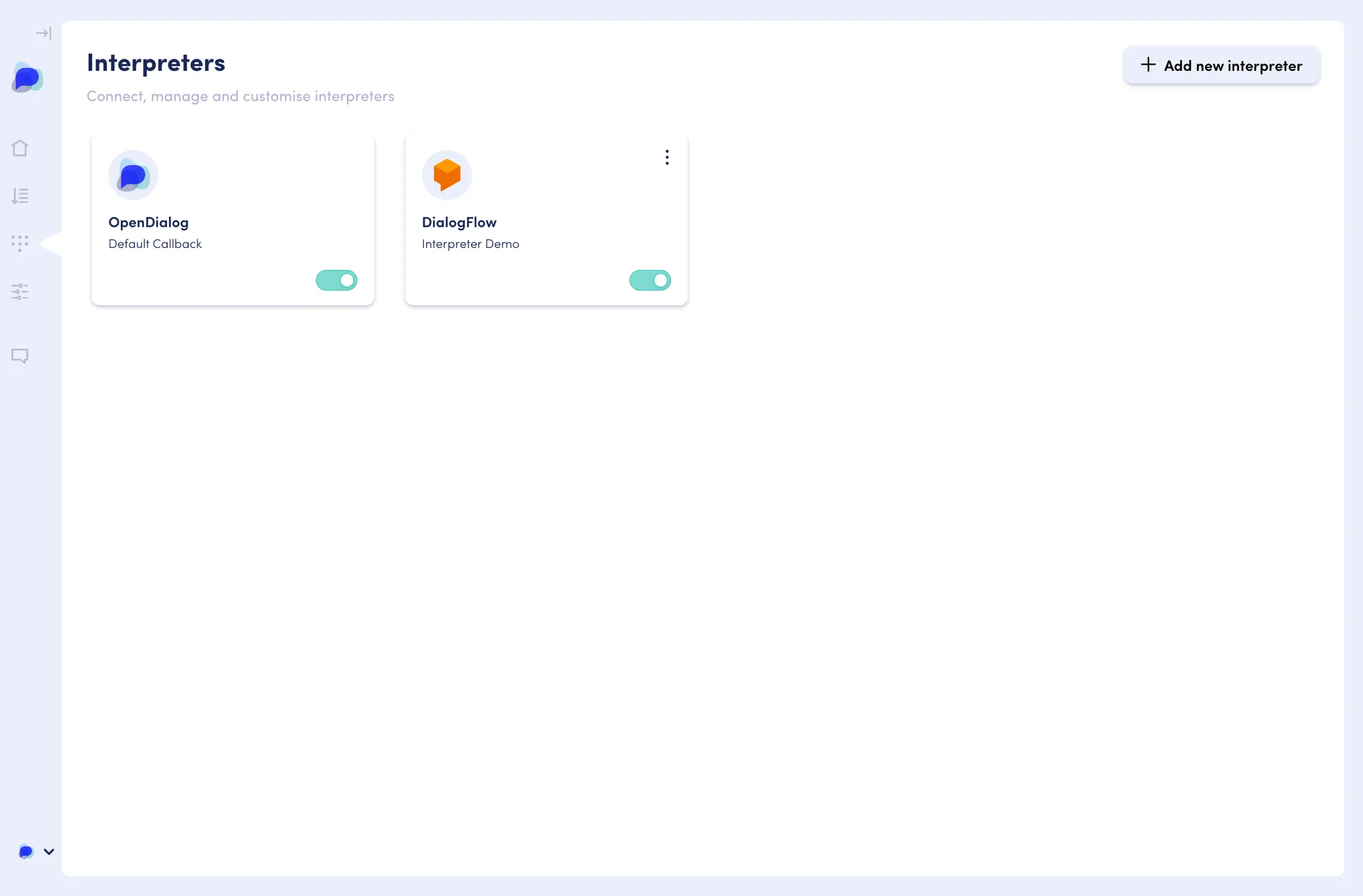

The last step is to activate our interpreter so that we can use it from within scenarios.

Using the interpreter for an intent

Ok - let's try out our new NLU interpreter!

We will create two intents in Dialogflow. One for "I need help" and one for "I have a question".

The intents just have some example phrases associated with them and nothing else. We will handle the rest from within OpenDialog.

We will create a new scenario and add two open turns in the Welcome Scene, with each turn handling one of the intents.

The request intent from the user is set to use the Interpreter that we just created and we've set the confidence level to 60%.

The message is attached to the response intent.

Preview

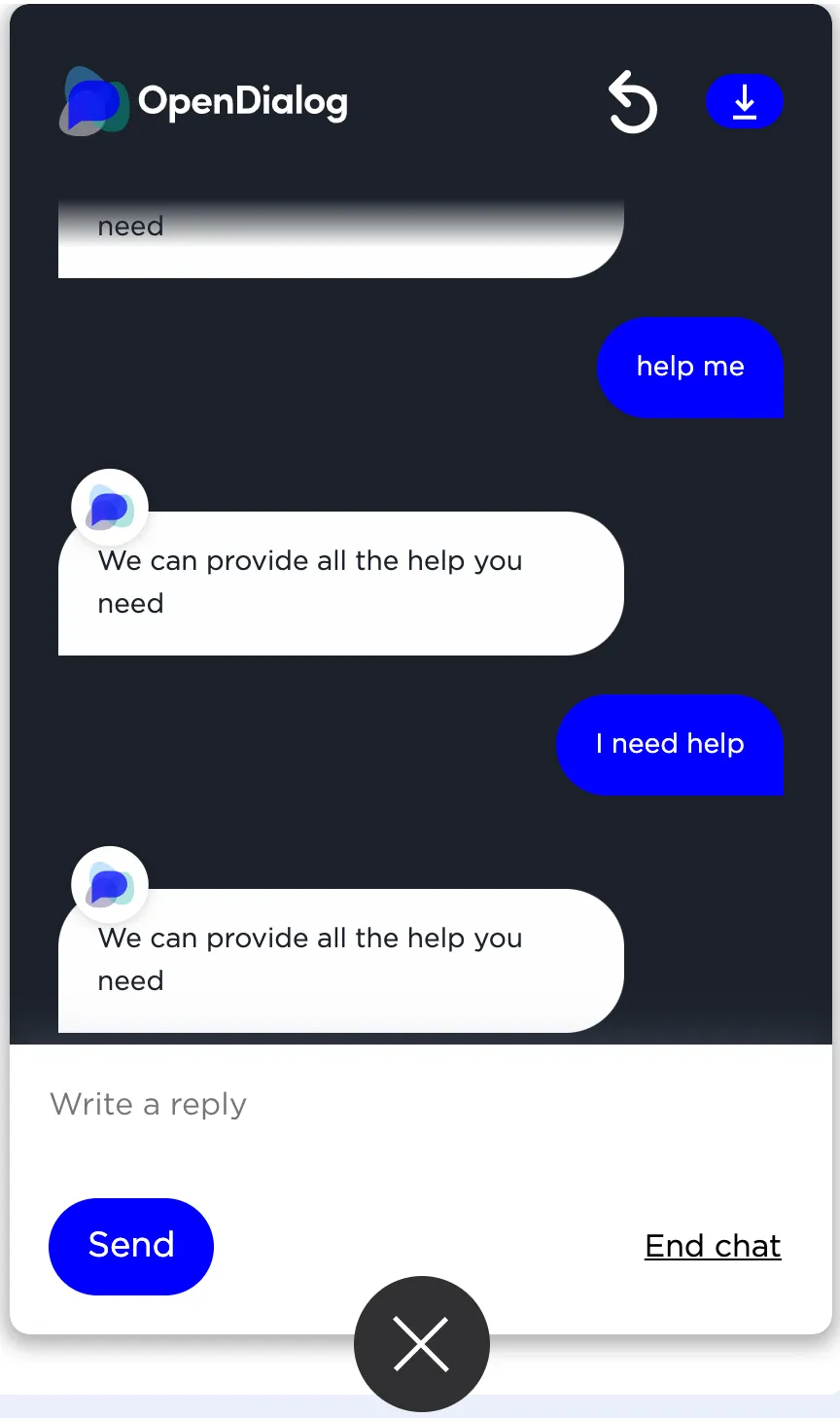

A quick try in our WebChat widget shows that our intent is being interpreter successfully by Dialogflow and providing a response.

Now that we know how to handle intents using Dialogflow as an NLU interpreter let's take a look at how to use Dialogflow knowledge base to handle FAQ queries in our next section.

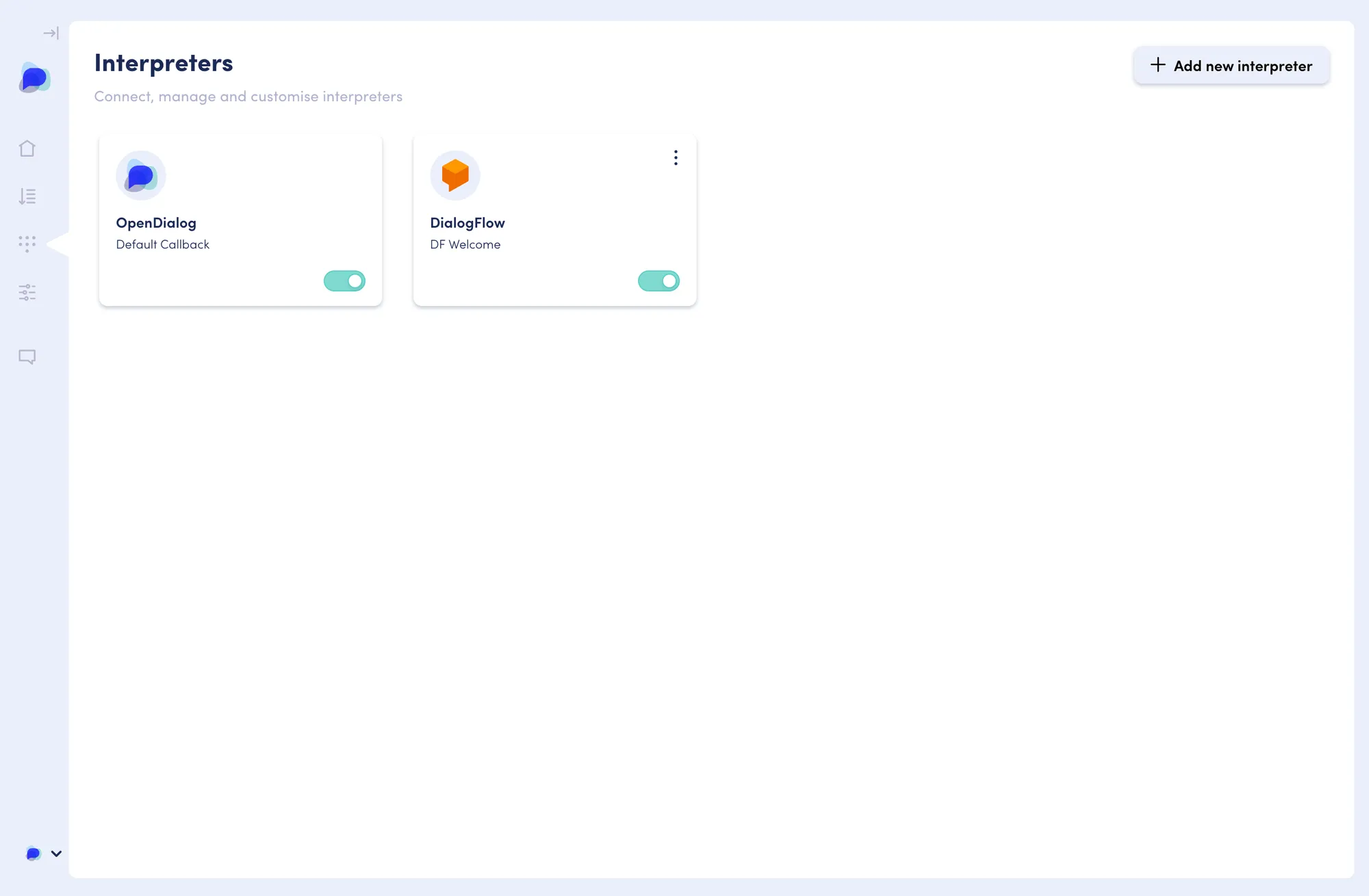

OpenDialog Interpreter Manager

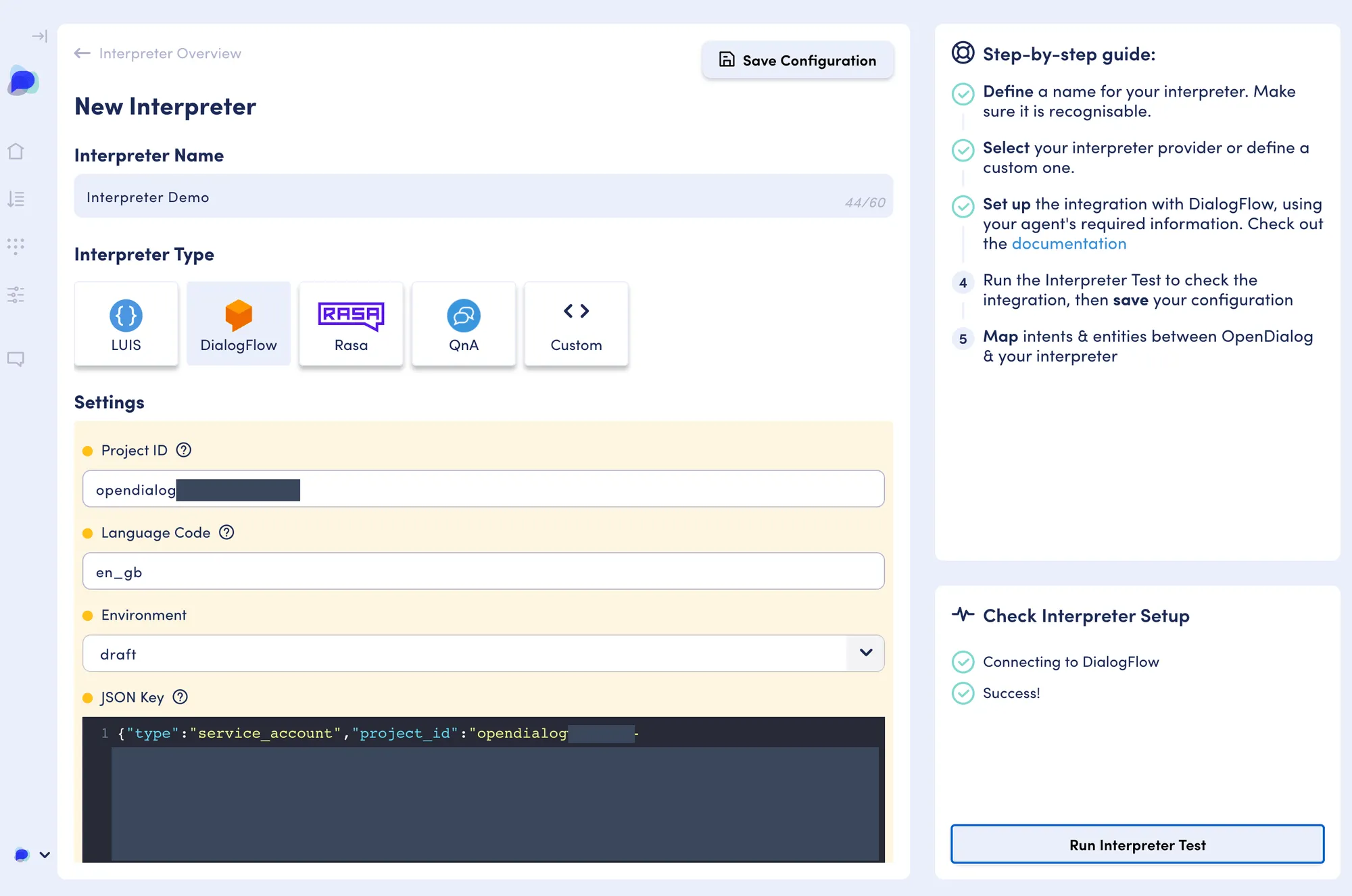

Dialogflow Interpreter Configuration & Test
Intents in Dialogflow

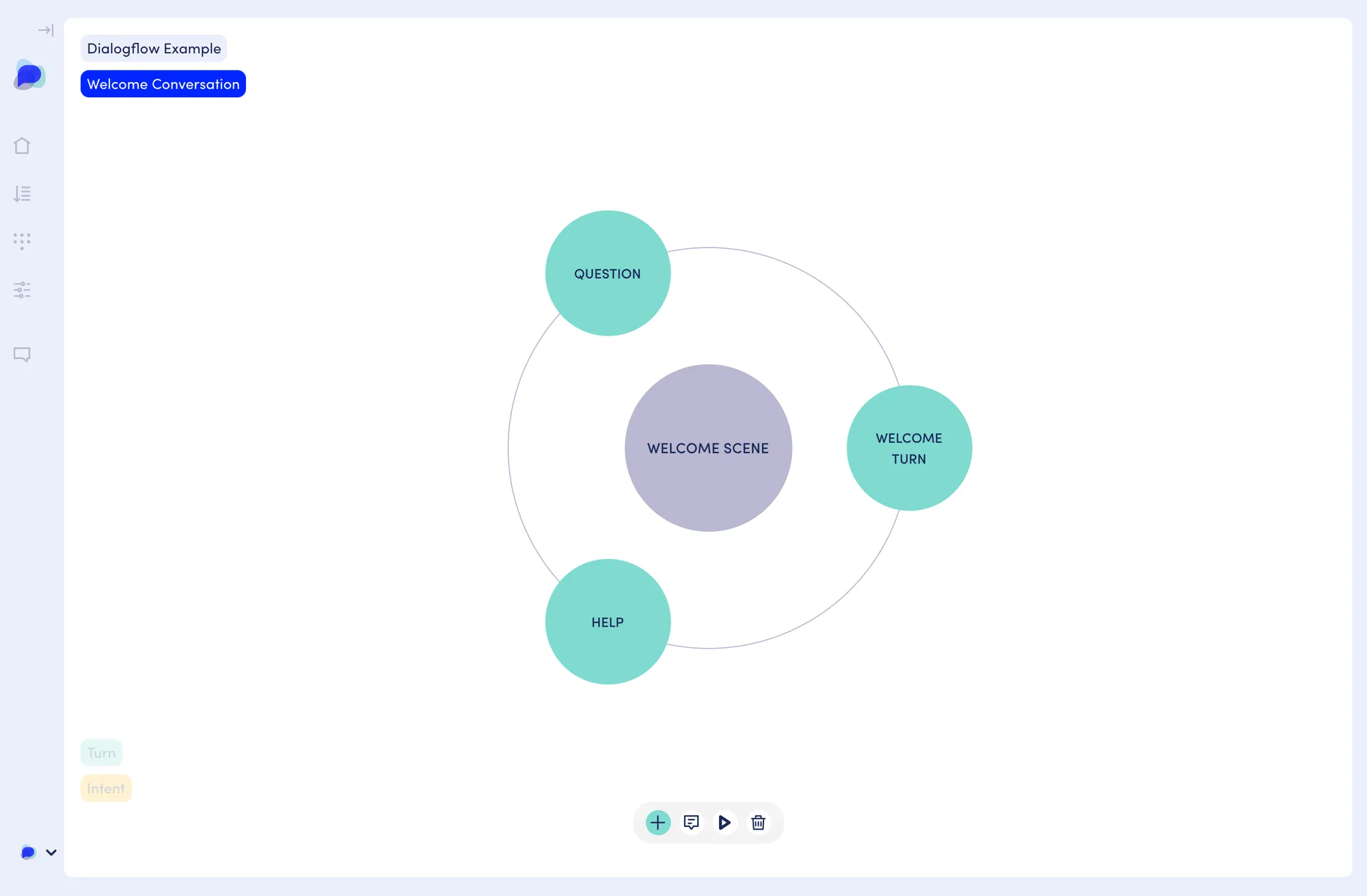

Welcome scene for Dialogflow example

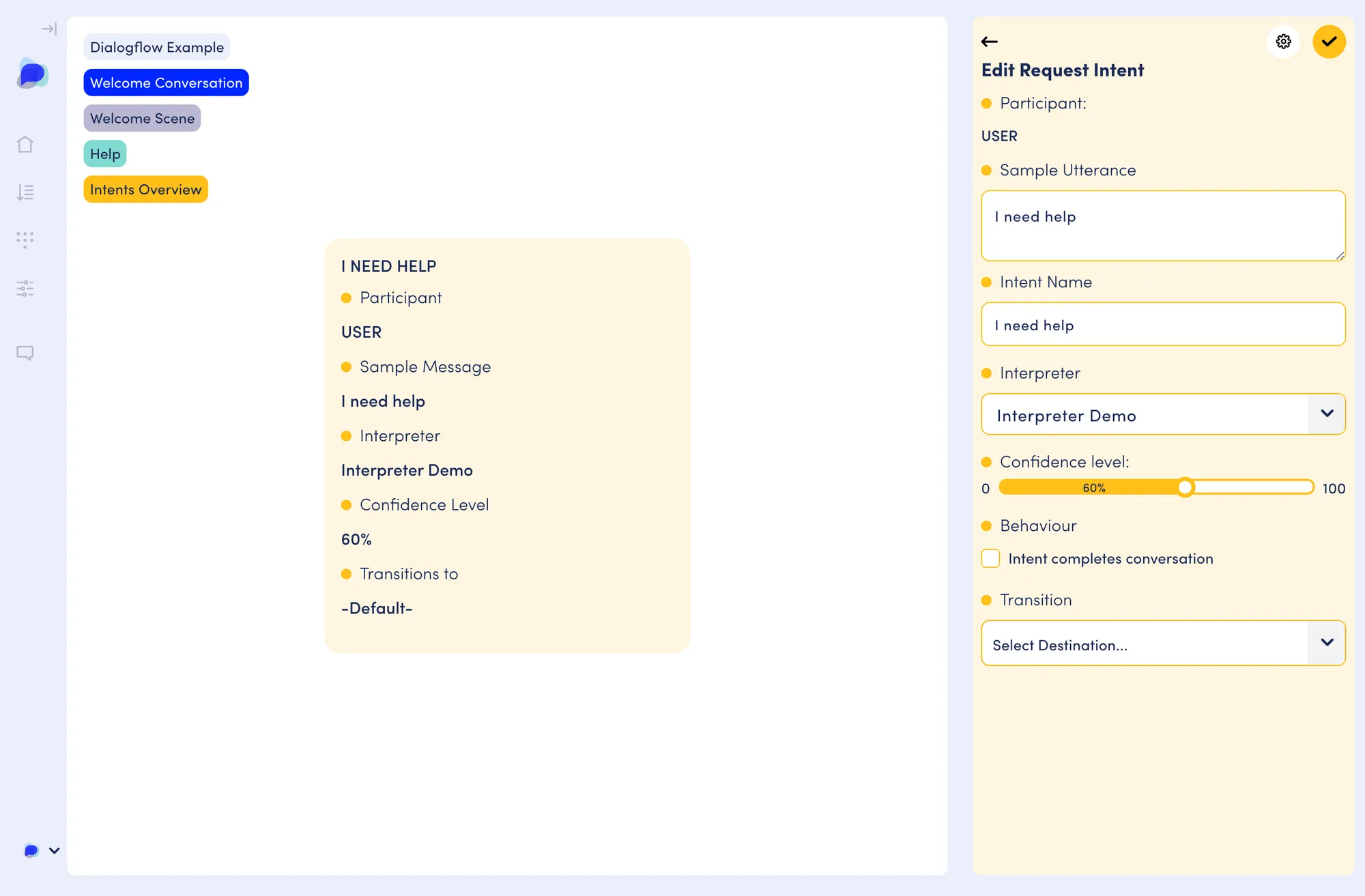

Configuring an intent to use our DF Interpreter

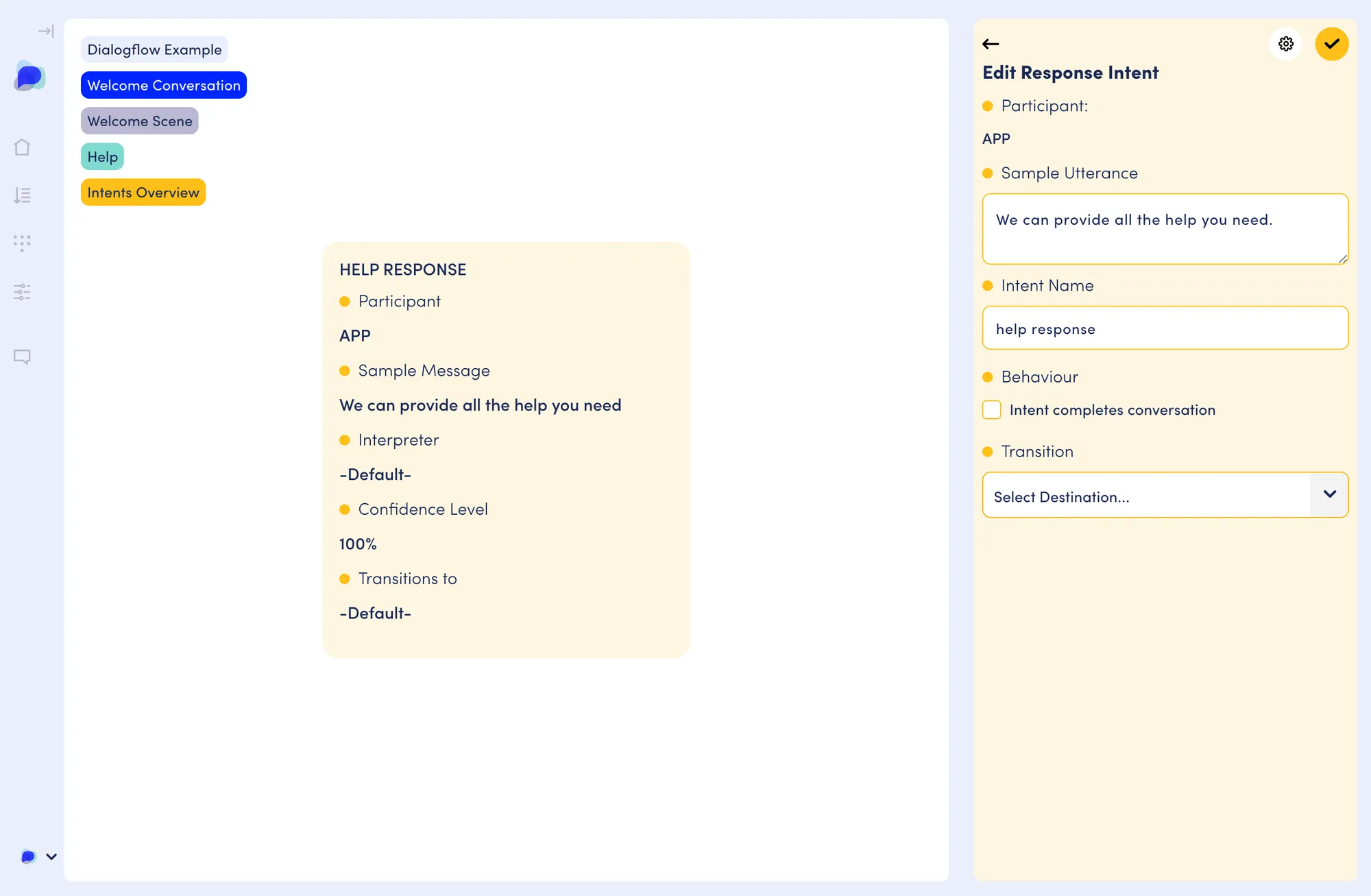

Response to help request intent
